pressStudy 1040.jpg (33383 bytes) pressStudy 1040-1.jpg (28727 bytes) pressStudy 1040-2.jpg (34013 bytes) pressStudy 6061.jpg (30301 bytes) pressStudy 6061-1.jpg (31208 bytes) pressStudy 6061-2.jpg (32510 bytes) pressStudy 6061-3.jpg (26531 bytes) Video Deflection
Recent decisions and discussion in regards to axles and their strength has prompted some investigation and produced a strength test on a 2mm wall thickness of a 1040 grade steel tube axle and that of a 6061- 40mm -8mm wall thickness aluminum axle - the results indicate the comparison to each other and the weaker of the two .. pictures attached are compliments of Zedtec Engineering Toowoomba Drawing and Technical department.

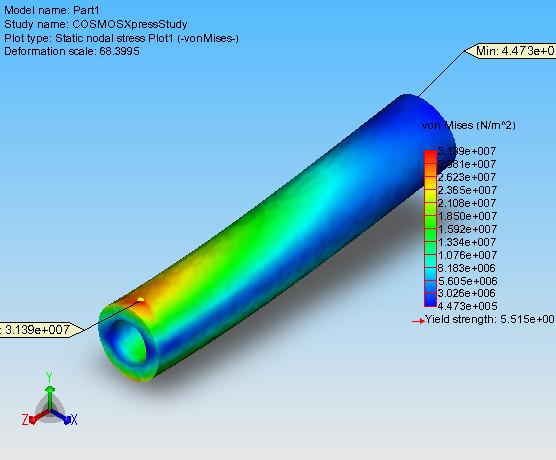

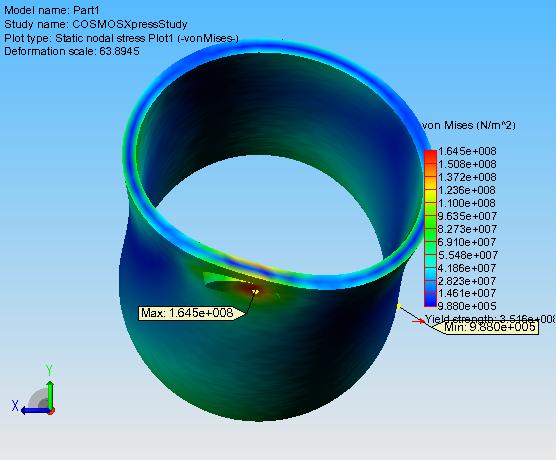

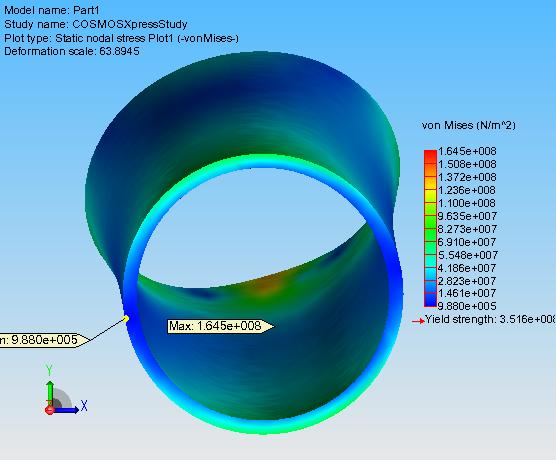

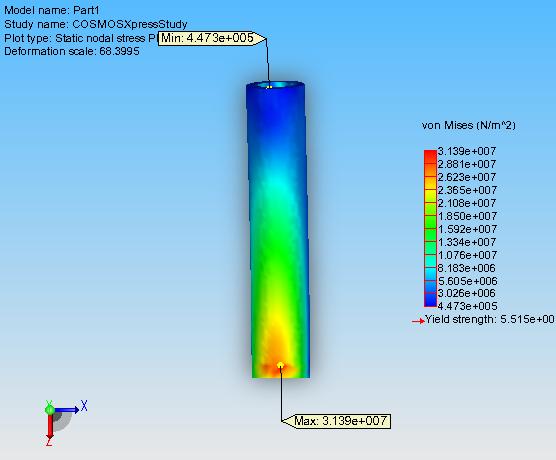

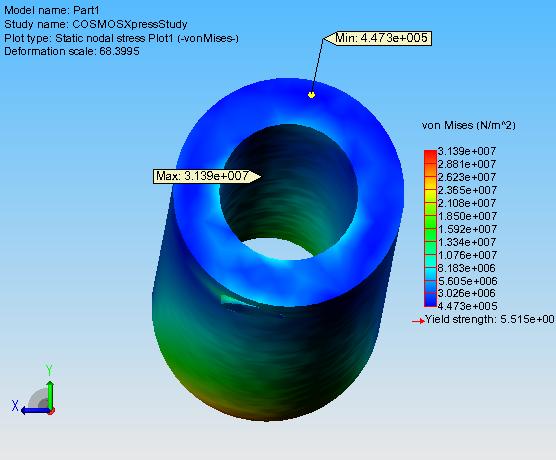

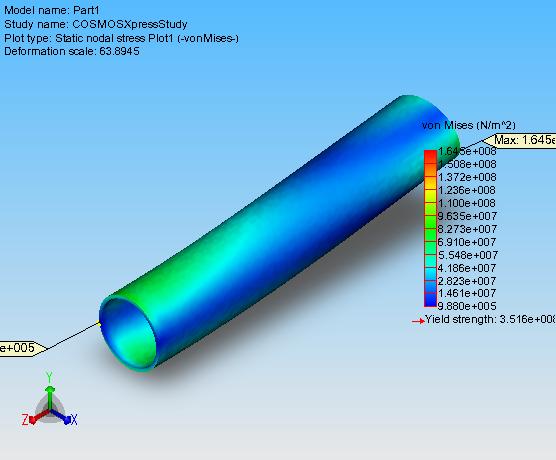

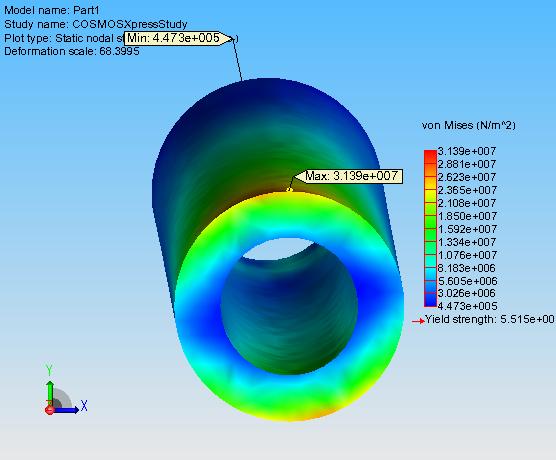

The thumbprints left above are 1040 Steel.................................Thumbprints above are 6061 Allloy................
